Boiling & Serology Water Bath

Introduction to the Laboratory Water Bath

A Bain Marie or water bath is a laboratory device used to create precise and stable temperatures for a wide range of experimental procedures. The unit typically consists of a stainless-steel tank filled with water, into which various laboratory vessels are placed in order to reach and maintain the desired temperature for chemical reactions and analytical tests.

A laboratory bain-marie provides a controlled hot water environment that enables experiments requiring different temperature levels. The device is equipped with a temperature controller and thermostat that measure and regulate the water temperature accurately.

Laboratory water baths are widely used for serological tests, biochemical assays, pharmaceutical experiments, and any other procedures that require specific temperature conditions. They are considered essential tools in medical, research, food industry, and educational laboratories.

What Is a Laboratory Water Bath?

A laboratory water bath is a heating device designed to maintain samples at a constant temperature by immersing them in a heated liquid, typically water. It ensures uniform and gentle heating, which is critical for temperature-sensitive samples and reactions.

Components of a Boiling & Serology Water Bath

A typical boiling and serology water bath consists of the following main components:

• Water bath tank:
  The primary part of the unit, usually made of stainless steel, which holds the water.

• Heating element:
  Used to heat the water inside the tank to the set temperature.

• Thermostat / temperature controller:
  Regulates and maintains the temperature of the water bath at a defined setpoint.

• Thermometer / temperature display:
  Indicates the actual temperature inside the water bath.

• Lid:
  Designed to minimize heat loss and reduce water evaporation.

Applications of a Laboratory Water Bath

Laboratory water baths are used for a variety of applications, including:

• Heating and incubating serology samples

• Heating and melting materials

• Performing various biochemical and clinical laboratory tests

• Maintaining sample temperature during long-term experiments

Advantages of Using a Laboratory Water Bath

• Uniform and gentle heating
  Water baths do not rely on direct flame, resulting in smooth and uniform heat distribution that minimizes the risk of damaging samples.

• Accurate and adjustable temperature
  The temperature can be precisely set and maintained throughout the experiment.

• Safe and reliable operation
  When used correctly, water baths are safe, reliable instruments that pose no significant risk to the user.

Safety Guidelines for Using a Boiling & Serology Water Bath

• Carefully read and follow the manufacturer’s instructions before use.

• Place the water bath on a flat, stable, and level surface.

• Operate the device in a well-ventilated area.

• Do not place flammable materials inside the water bath.

• Always wear appropriate personal protective equipment, such as gloves and safety goggles.

• Disconnect the device from the power supply before cleaning or maintenance.

Boiling & Serology Water Bath

A Boiling and Serology Water Bath is a specialized type of laboratory water bath designed to achieve high temperatures, particularly around the boiling point of water (~100 °C at atmospheric pressure), for serological tests and antibody/antigen detection.

It operates similarly to a conventional boiling water bath but is optimized to reach and maintain very precise, high temperatures required for critical serological applications. This type of water bath provides gradual and highly stable heating, making it ideal for tests that demand fixed and accurate temperature conditions. This stability turns the unit into a reliable and precise tool for laboratory diagnostics, especially in:

• Antibody and antigen assays

• ELISA and related immunological tests

• Temperature-sensitive serological reactions

Because serological and biochemical reactions are highly temperature-dependent, the precise temperature control provided by a boiling & serology water bath is essential for obtaining accurate and reproducible results.

What Is a Serology Water Bath?

A serology water bath is a laboratory instrument designed to provide a controlled and uniform thermal environment for serological reactions. It is typically used to maintain precise temperatures during assays such as:

• ELISA (Enzyme-Linked Immunosorbent Assay)

• Agglutination tests

• Other immunological and biochemical reactions requiring strict temperature control

The thermostat integrated into the water bath allows the temperature to be maintained at a specific setpoint. This is crucial, as even small temperature fluctuations can significantly affect serological and biochemical results.

A serology water bath usually consists of:

• A water-filled tank

• A heating element that maintains a stable and uniform water temperature

• Racks or holders in which sample containers are placed in or above the water to benefit from gentle and even heating

Serology laboratories rely on water baths because serological reactions often require precise temperature, sometimes controlled humidity, and defined incubation times to ensure proper antigen–antibody binding and reliable outcomes.

Key Features of a Serology Water Bath

Typical features include:

• Independent safety thermostat to prevent operation when the water level is depleted (dry protection).

• Double-walled body to minimize heat transfer to the outer surface and enhance user safety.

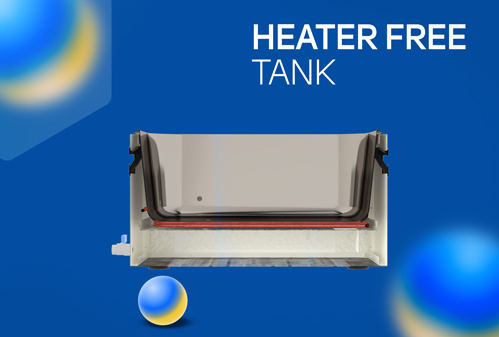

• Heating element installed outside the water tank, preventing direct contact with water and significantly extending the element’s operational life.

• Seamless, press-formed stainless steel tank with no welds, ensuring excellent corrosion resistance and easy cleaning.

• Specially designed external body to occupy minimal bench space in the laboratory.

• Over-temperature and sensor failure alarms for safe operation.

• High temperature stability and reproducibility.

• Temperature uniformity at different points within the tank.

• Central diagnostic / troubleshooting system.

• PT100 temperature sensor for accurate measurement.

• Accuracy of ±0.1 °C.

• PID controller for precise temperature regulation.

What Is a Boiling Water Bath?

A boiling water bath is a laboratory device used to gradually heat and maintain chemical substances and samples at a constant temperature, typically near the boiling point of water. It consists of:

• A tank or reservoir filled with water

• A heating element for raising the water temperature

• A thermostat or controller to adjust and stabilize the desired temperature

Applications of a Boiling Water Bath

• Incubation: Providing accurate and constant temperature for enzymatic reactions and microbiological activities.

• Heating culture media: In tissue culture or microbiology, to prepare or liquefy media that may have solidified.

• Water jacket function: In some ELISA readers or reaction devices to maintain internal temperature.

• Biochemical and serological tests: Where a defined, stable temperature is essential.

Because it provides a controlled thermal environment, the boiling water bath is a key instrument for ensuring precise and reproducible conditions across many laboratory protocols.

Typical Features of a Boiling Water Bath

• Independent safety thermostat (dry protection)

• Double-walled body for reduced external heat transfer and increased user safety

• External heating element for extended service life

• Seamless, press-formed stainless-steel tank (easy cleaning)

• Space-saving external design

• Good temperature uniformity across different points in the tank

Differences Between Serology and Boiling Water Baths

Water baths are widely used in laboratories for heating and maintaining the temperature of samples and reagents. They are typically available in two major variants: serology water baths and boiling water baths, each with its own applications and advantages.

Serology Water Bath

• Temperature range: Typically adjustable from about 5 °C to 100 °C.

• Applications:

  • Incubation

  • Cell culture

  • Serological and immunological tests

  • Heating culture media and reagents

  • Thawing frozen samples

• Characteristics:

  • High temperature accuracy and stability

  • Suitable for sensitive and delicate samples

  • Often equipped with a timer and advanced digital temperature control

Boiling Water Bath

• Temperature range: Adjustable up to approximately 100 °C.

• Applications:

  • General laboratory heating

  • Warming laboratory glassware

  • Melting substances

  • Boiling water for routine procedures

• Characteristics:

  • Less precise in temperature control compared to serology baths

  • Not ideal for highly temperature-sensitive samples

Key Considerations When Selecting a Water Bath

When choosing a suitable water bath for your laboratory, consider the following factors:

• Application:
  Define whether you need the water bath for serology, general heating, enzymatic reactions, cell culture, etc.

• Temperature range:
  Ensure the device covers the required minimum and maximum temperatures for your applications.

• Temperature accuracy and stability:
  For highly sensitive assays, a serology water bath with high accuracy and PID control is recommended.

• Capacity:
  Choose the appropriate tank volume and internal dimensions based on the number and size of vessels you will use.

• Additional features:
  Options such as timers, circulating systems, digital controllers, alarms, and covers may be necessary depending on your protocols.

The optimal choice depends on your specific application, required temperature range, precision level, capacity, and desired functionality.

Temperature Range of Laboratory Water Baths

A laboratory water bath is an essential instrument for maintaining samples within a defined temperature range. In biochemical, immunological, and immunohematological assays—as well as many other medical and biological tests—specific temperatures are required for chemical and biological reactions.

Examples include:

• 37 °C for many enzymatic reactions and routine incubation (similar to an incubator).

• 56 °C for certain immunohematology procedures.

Most standard laboratory water baths operate within a range from approximately room temperature (about 25 °C) up to 60 °C. For temperatures above 60 °C, baths with special covers and design features are typically used.

Many models, including FG water baths, offer precise temperature setting and control, allowing the user to define the exact temperature needed for each test.

Types of Laboratory Water Baths

Laboratory water baths are available in several types to serve different needs:

• Boiling Water Bath (Boiling Water Bath):
  Uses water as the heating medium and can bring it to the boiling point, transferring heat gradually and steadily to the samples.

• Circulating Water Bath (Circulating Water Bath):
  Also known as a heating/cooling bath. It uses continuous liquid circulation (e.g., water) via an internal pump to distribute heat uniformly throughout the tank and maintain a very stable temperature. Typical uses include calibration of temperature instruments, chemical testing, scientific research, and industrial applications.

• Shaking Water Bath (Shaking Water Bath):
  Designed to simultaneously heat and agitate samples. It is ideal for applications that require both controlled temperature and continuous mixing, such as chemical and biochemical assays, as well as pharmaceutical and biological research.

• Oil Bath (Oil Bath):
  Uses oil as the heat-transfer medium instead of water. Due to the lower specific heat of oil, temperature changes occur more rapidly, and the device is suitable for applications requiring higher temperatures and dynamic temperature control. Commonly used in biotechnology, medical, pharmaceutical, petroleum engineering, and other industrial fields.

• Tissue Bath (Tissue Bath):
  Used to maintain specific temperatures for histology and pathology experiments.

• Sand Bath (Sand Bath):
  Uses sand as the thermal medium and is employed for higher temperatures and special applications where indirect heating is required.

Each type of water bath has distinct features and is selected based on the technical needs of the laboratory.

Structural Variants of Water Baths

From a structural and usability perspective, water baths also come in different mechanical designs, such as:

• Standard (simple) water bath:
  A basic tank filled with water where the heating medium (water) is heated to the desired temperature.

• Inclined-lid water bath:
  Equipped with a sloped lid design that facilitates easy access to and removal of samples from the tank.

• Ring-lid water bath:
  Features a ring-type lid that allows quick insertion and removal of vessels without fully opening the cover, helping maintain temperature stability.

Each structural type is designed to support specific handling and application requirements.

Price of FG Boiling & Serology Water Baths

The price of FG boiling and serology water baths varies depending on the specific model and tank size.
To purchase a unit or obtain the latest price list, please contact the FG Sales Department.
